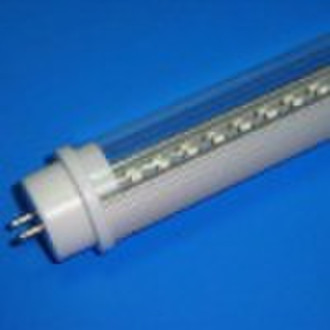

Led tube light T8

Product ParameterModelHZ-T8-W60-6WLight SourceSMD 3528 140pcsInput VoltageAC 100V 277VWatt(W)6Dimensions600mm (2ft)Beam Angle110±5 DegreeRendering Index>75Luminous Flux(lm)600-700(Milky cover); 700-800(Clear cover)CCTWarm White, Pure Whiteand Cool WhiteLife Span(h)50,000(MTBF)Weight210±5gApplications* Hotels, restaurants, bars, cafes;* Lobbies, corridors, stairwells;* Office, conference room, residential room, etc.Product Features* CE, RoHS, UL standard.*6W to replace 18W traditional lamp.* Light Efficiency more than 80 lm / w.* Unique Dual Protection Driver, Electrical and Heat Insulation.* Lower maintenance cost.* Free of mercury and hazardous materials.Product Benefits* Compared with traditional lamp, it only consumes 1/3 of the power, but illumination increased by 100% and life expectancy increased by 10 times.* Almost no maintenance and no replacement costs, higher profit.* Internal drive and easy installation.Product Advantages1, Apply COB Integrated Package High Power LEDA. Excellent heat dissipation(1) Increase more than 200% heat dissipating area than other kinds package tech, it makes the heat diffuse from LED to Heat sink easily and controls the blue LED chip temperature rise when it lightning, which can ensure high Light Efficiency.(2) Substrate made of pure copper material, with good Thermal Conductivity and low Thermal Resistance,(3) Heat transfer medium use Thermal Conductive Silicone with high thermal conductivity, stable performance and strong heat transfer.B. Using Fluorescent Powder / Phosphor with high conversion efficiency and Strict optical design ensure to get high Light Efficiency, balanced light and wide beam angle, and Light Efficiency up to 130lm / w.C. Low Light Attenuation / Luminous Decay: 70% Lumen Maintenance after 50,000Hrs.D. Long lifetime: not through Reflow Soldering machine during the package.2. Excellent Heat Dissipation Performance(1) LEDs are placed on the high thermal conductivity aluminum plate, the LED junction’s temperature will be lower, which is able to accelerate the heat dissipation.(2) Heat transfer medium use Thermal Conductive Silicone with high thermal conductivity, stable performance and strong heat transfer.(3) Aluminum radiator with high thermal conductivity, designed of the high efficiency air convection cooling structure through the rigorous analysis and fluid dynamics simulation; Heat dissipation capacity increased by 50% for the anodized treatment on the surface and not easily fade.(4) The design of Semicircular aluminum plate is useful to the heat dissipation.3. Isolated Constant Current Driver, driver efficiency up to 80%; IC imported from United States; constant current accuracy less than 2%; control components current precisely; over-current, overload, no-load protection.4. Circuit Design and Safety StandardA. Opt coupler isolation circuit design.B. Isolation coil transformers, non-inductive.C. Effectively resist surrounding electromagnetic environment effect, and inhibit the proliferation of electromagnetic energy to the surrounding environment.D. Accord with the latest standards in LED Lighting industry;EMC (EN55015, EN61547, EN61000-3-3 and EN61000-3-2)LVD (EN60968, EN62031, EN60061 and EN62471UL (UL8750, UL1993 and UL1310)If the products are abnormal, it will not damage the human and property, protect user safety effectively.Remark:Led-leader Trade Co., Ltd focus on LED Package and LED Lighting filed. Our main products include: led light, led lamp, led strips, led bulb, led spotlight, led tube, led ceiling light, led module, led flashlight or torch light, led rechargeable light etc.
